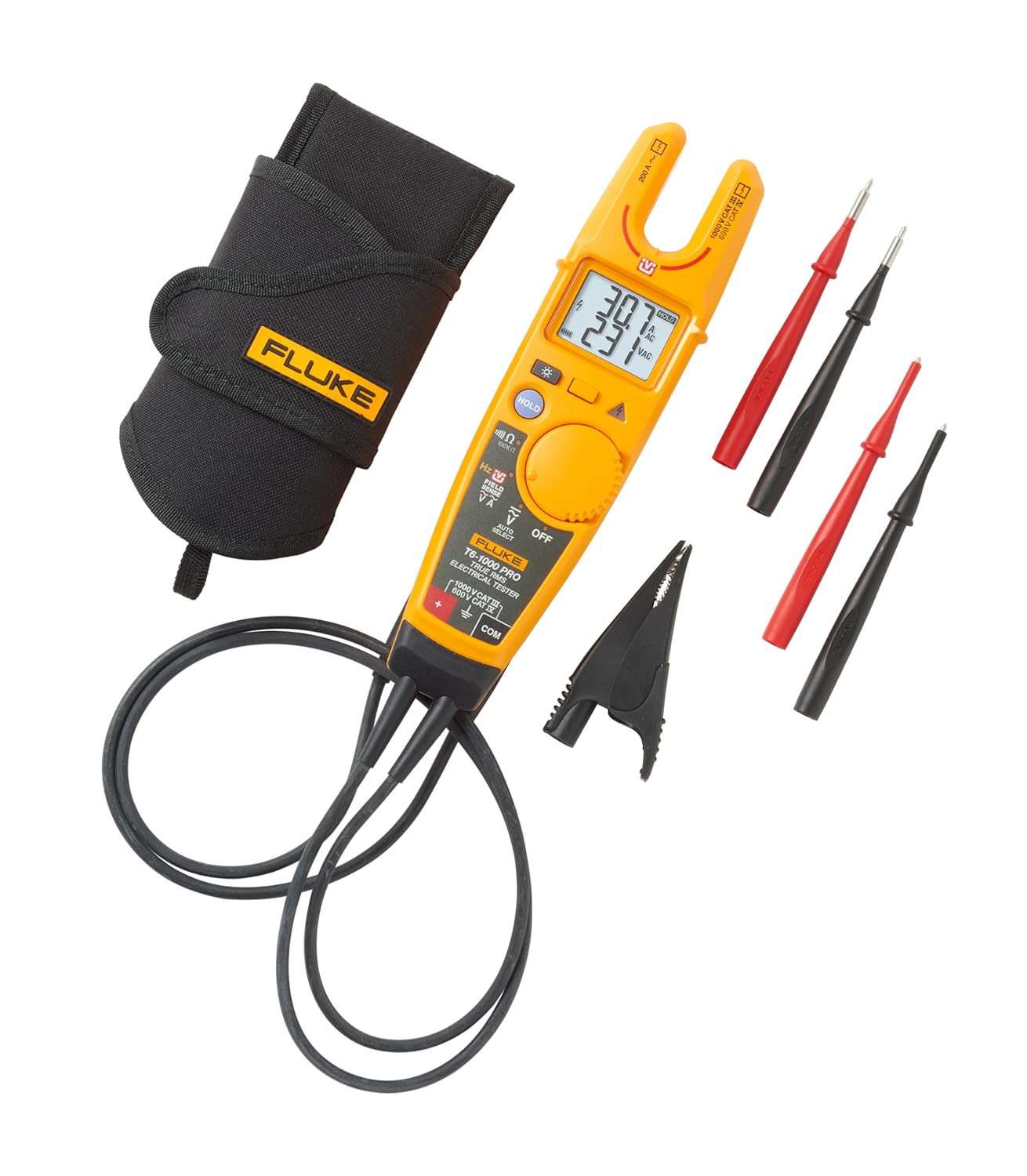

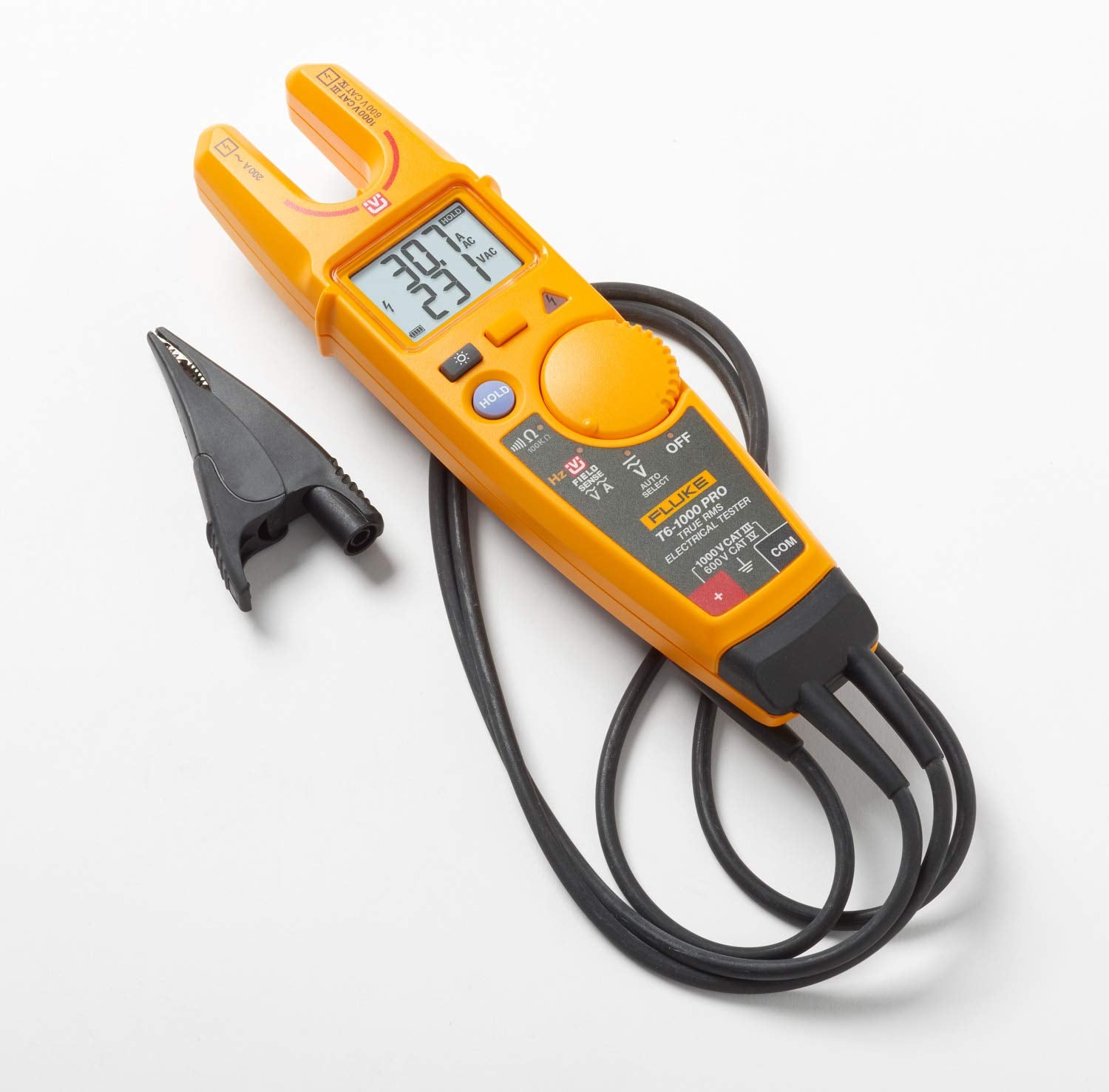

T6-1000 PRO Electrical Tester
T6-1000 PRO Electrical Tester
| Power Source | Alkaline |
| Style | ELECTRICAL TESTER WITH ALLIGATOR CLIP AND HOLSTER |
| Color | yellow |
| Item Weight | 608 Grams |
- Safety—Measure ac voltage, current, frequency without touching a live wire
- Faster answers—Troubleshoot with all power supply measurements at-a-glance
- More information—See ac voltage and current values at the same time
- Works where you need it—Fork fits over wires up to AWG 4/0 (120 mm2) with a 17.8 mm (0.7 inch) jaw opening
- Accurate on complex signals—True-rms measurements improve accuracy on non-linear loads
- Additional tests—Resistance to 100 kΩ, frequency from 45 Hz to 66 Hz
- T6-1000 Pro Exclusive: Visible answers in dark work spaces—Visual Continuity lights the screen bright green when continuity is detected
Fluke Electrical Testers
Known as go-to frontline troubleshooting tools by Electricians, Fluke Electrical Test Tools are designed for every application, from non-contact to contact voltage and continuity detection, open jaw current and motor phase rotation testing. Accurate, safe and easy to use.
T6-1000 PRO Electrical Tester
See voltage and current at the same time

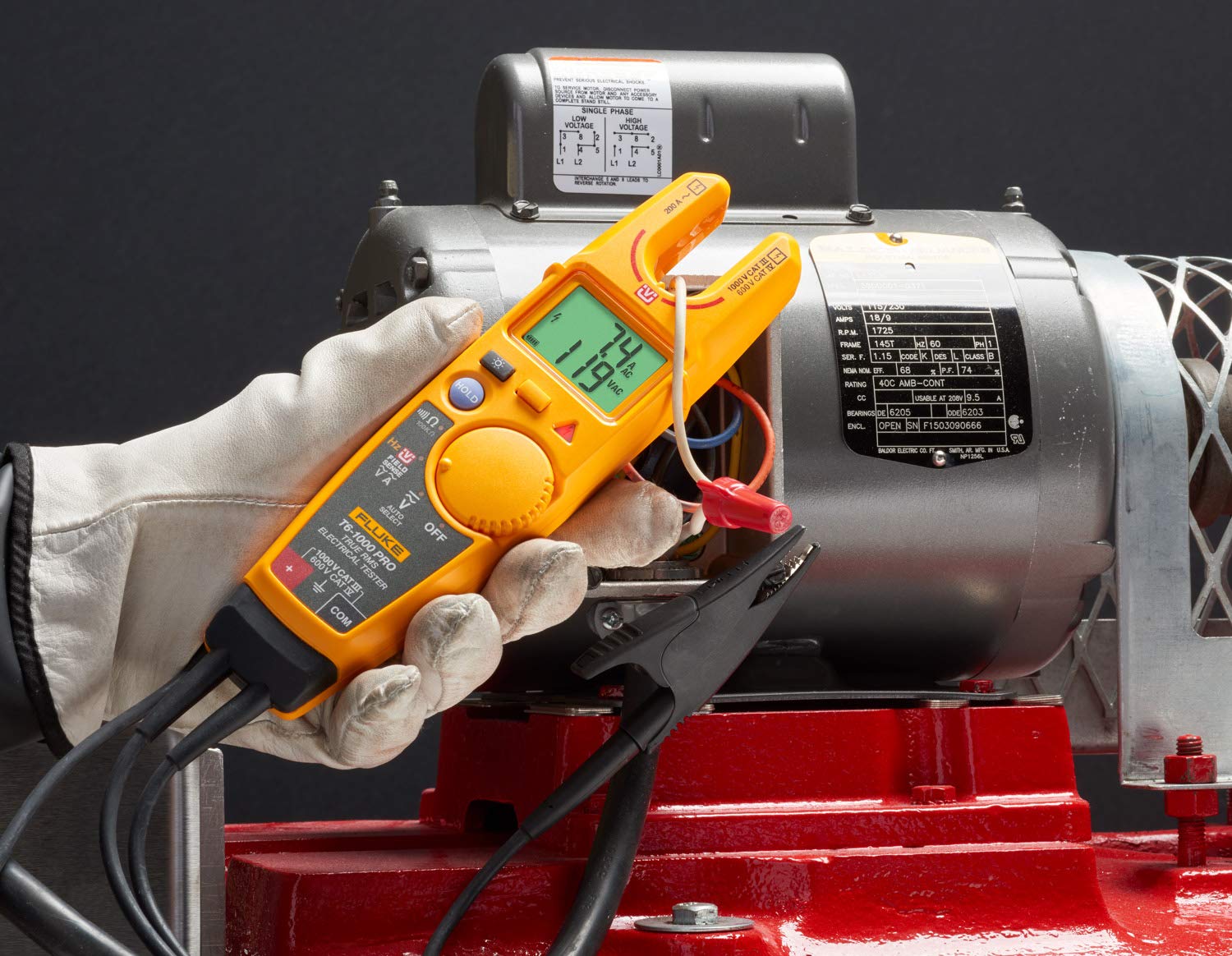

The T6-1000 PRO Electrical Tester measures voltage up to 1000 Vac and current up to 200 A ac, all through the open fork and without test lead contact to live voltage. Connect the black lead to ground with the included heavy-duty alligator clip, slide the wire into the open fork, and see both voltage and current at the same time. On wires up to AWG 4/0 (120 mm2), carrying as much as 200 A and1000 V ac. Even with gloves on. It will change how you do your job.
- Simultaneous voltage and current display

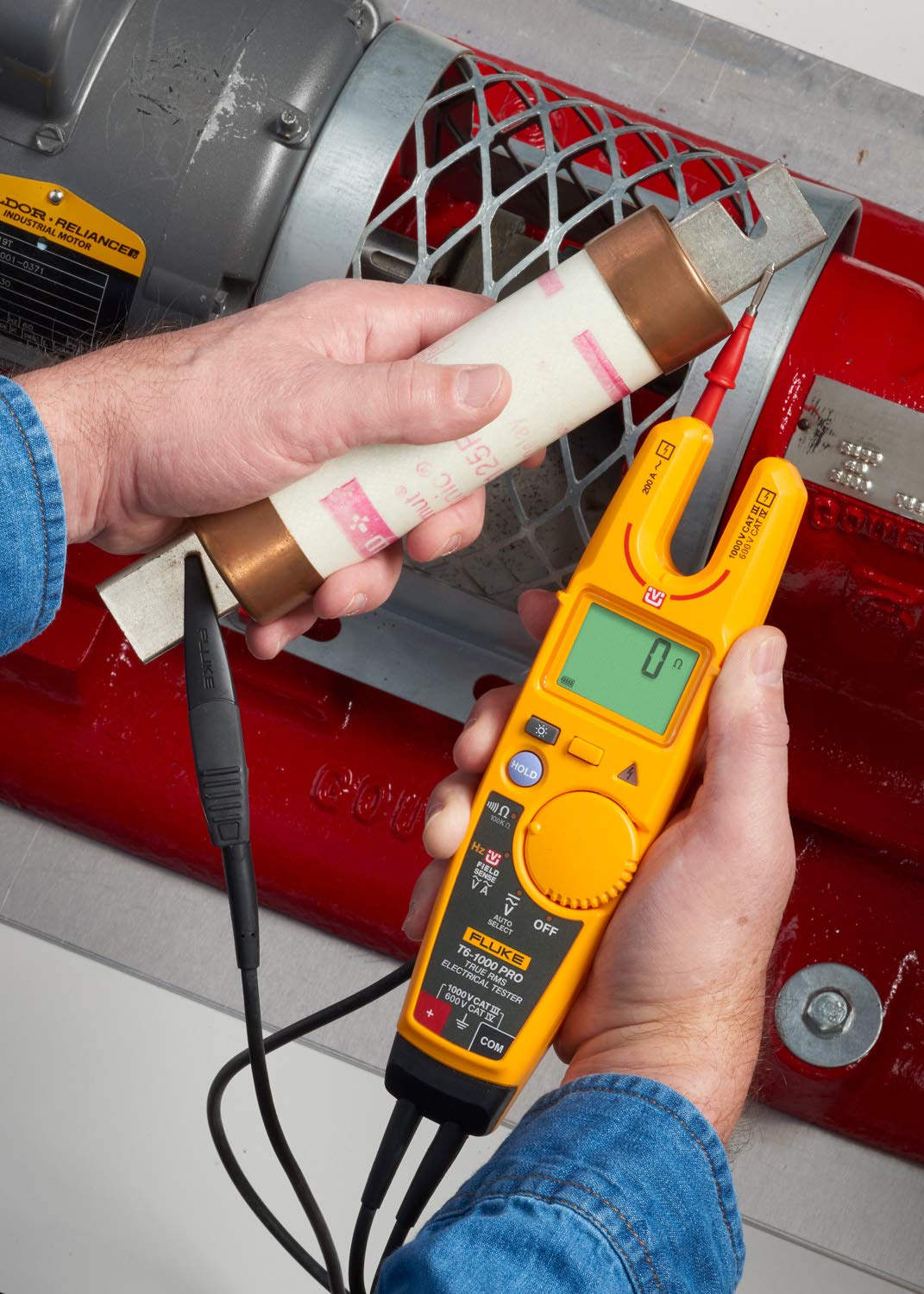

- Visual Continuity–When checking continuity, the screen automatically turns green
- FieldSense technology for ac voltage, current and frequency measurement without making electrical contact to live voltage
- Works with most wire up to AWG 4/0 (17.8 mm/0.7” jaw opening)
- Accepts optional Fluke TPAK Magnetic Meter Hanger for convenient operation
Key Features
|
|
|
|
|
|---|---|---|---|
Dual measurementsSee voltage and current at the same time, without touching a live wire. |
Visual ContinuityThe screen turns green to visually show continuity when working in loud or dark workspaces. |
True-rmsAccurate voltage and current measurements, even when measuring complex signals. |
